Auto Package

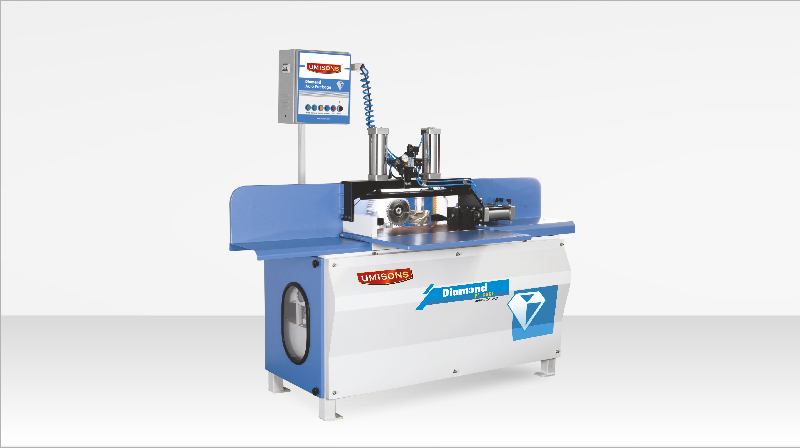

UI - 2406 A
Option 1

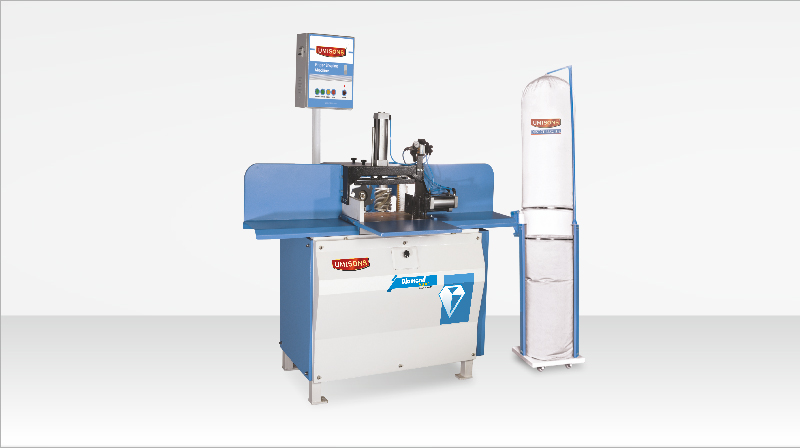

UI - 1206 A
Option 2
M/c : UI 1206 A
Auto Functions Except Feeding
Superior Finger-Jointing Machinery
for high quality high production
Diamond package work well for units that need high quality in high volumes. With new PLC based auto controls on vice unit, the feeding, pressing, end-cutting of the job pieces is made effortless. Suitable for industries like finger jointed board, flush doors and block boards.
Finger Shaping M/c | Finger Jointing Vice | |||
Package | Power Require | Working Capacity W/h(mm) | Working Capacity L / W / H(mm) | Power Require |
Diamond : UI 2406A | 10.5 HP | 600 / 150 | 2500 / 150 / 75 | 4 HP-AF , 3 HP-MF |
Diamond : UI 1206A | 8 HP | 300 / 150 | 2500 / 150 / 75 | 4 HP-AF , 3 HP-MF |
Notes :
- Diamond package cost includes a separate unit of dust collector, with ele. motor.
- Pressing vice, in any package, can be custom built to suit your specific
requirements. - Power-pack units of all Hydraulic models, are provided as standard accessory (inclusive of cost).
- Air-compressors of all Pneumatic models, are not considered in to the package.
Shall be ordered separately, at extra cost. - Efficient Pneumatic Drive option for speed available in all shaping m/cs.

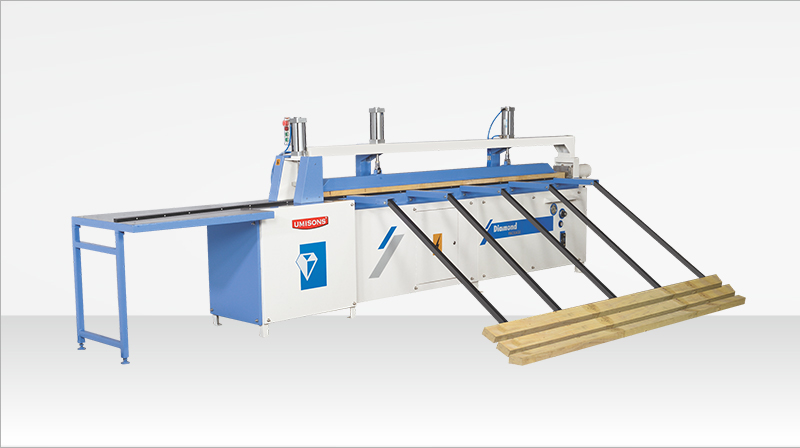

Auto Function Jointer
M/c : UI 806 MF
(Manual Feed)
Notes :
- End Cutting
- Pressing
- Auto Ejecting
Special work table for “high speed double active” production
Once the job-piece is pressed and ready, it gets transferred to second level of the table; vacating the place for next job piece. Thus giving non-stop production.
Notes :
- Diamond package cost includes a separate unit of dust collector, with ele. motor.
- Pressing vice, in any package, can be custom built to suit your specific
requirements. - Power-pack units of all Hydraulic models, are provided as standard accessory (inclusive of cost).
- Air-compressors of all Pneumatic models, are not considered in to the package.
Shall be ordered separately, at extra cost. - Efficient Pneumatic Drive option for speed available in all shaping m/cs.
