M/c : UI 4Star

Frame Master Package

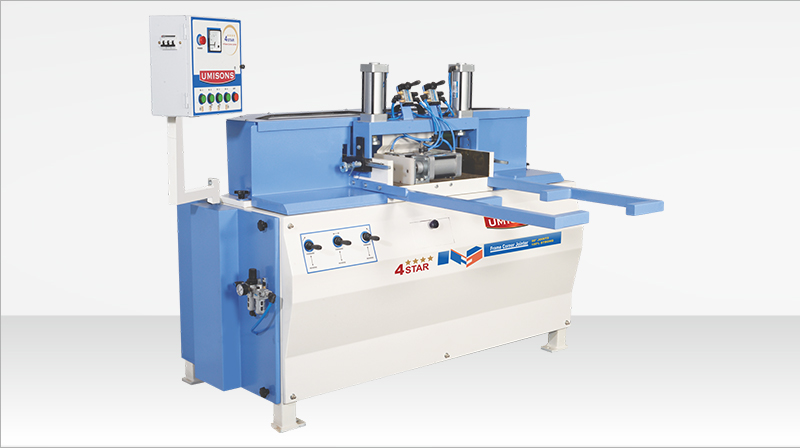

Frame-Corner-Jointer - Umisons Industries

Here, you don’t have to flip the wood to cut opposite slants on a frame piece, just move it to another spindle by keeping the bottom surface of the wood piece same. Thus, slants of the different corners match perfectly.

Note : Now Replaceable Cutter is Also Available


Technical Specification

Frame Cutter Jointer 4 Star 4 Star (H)
Max. Working Thickness 40 – 75mm 40 – 100mm
  Max. Working Width 90 – 150mm 90 – 150mm
Power Required 10HP 10HP
Compress Air Required 10kg /  cm² 10kg /  cm²

Double Groove, Rectangle Joints For Frame Application
