Panel Saw Machine Manufacturer in Ahmedabad, India
Umisons Industries is the No. 1 Panel Saw Machine Manufacturer in Ahmedabad, Gujarat. Buy Panel Saw Machines Latest Price In Ahmedabad. Panel Saw Machine in India.
Pneumatic Clamp (Optional) :
Pneumatic clamp allows more maneuverability in panel handling, sizing and cutting.
Model: PC + Three steps allows more flexibility for handling small pieces
Model: PC Single step
| Specifications | Unit | Technical Parameters |
| Sliding table length | mm | 3200 |
| Sliding table width | mm | 360 |
| Max. diameter I bore – saw blade | mm | 300 x 30 |
| Max. diameter I bore – scoring blade | mm | 120 x 20 |
| Saw blade speed | rpm | 4000 I 5000 |
| Scoring blade speed | rpm | 8500 |
| Tilting of saw unit | degree | 90°-45° (manual) |
| Motor for saw blade I scoring blade | hp | 7.5 I 1 |
| Total power – 3 Phase | hp | 8.5 |

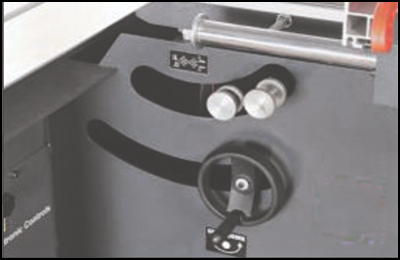

Scoring saw precision lever mechanism

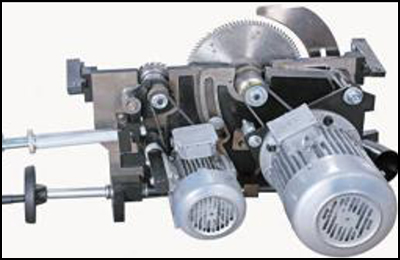

Powerful saw unit runs incredibly smooth as it is electronically balanced.

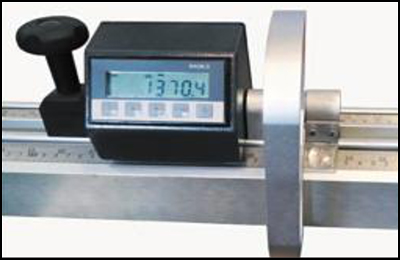

Digital Read Out (DRO)

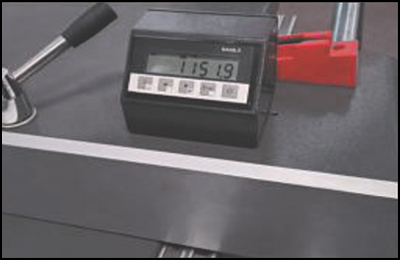

Digital Read Out (DRO-R)

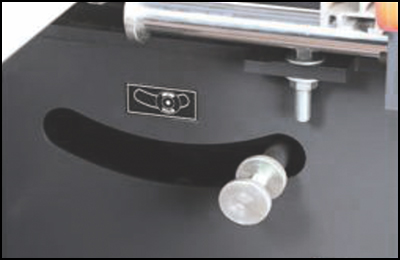

Scoring saw precision lever mechanism

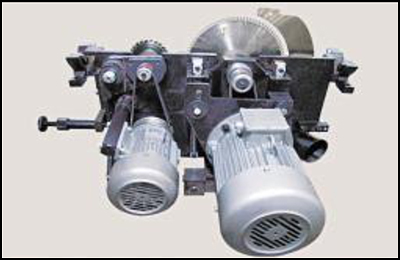

Smooth-running and powerful saw unit.
