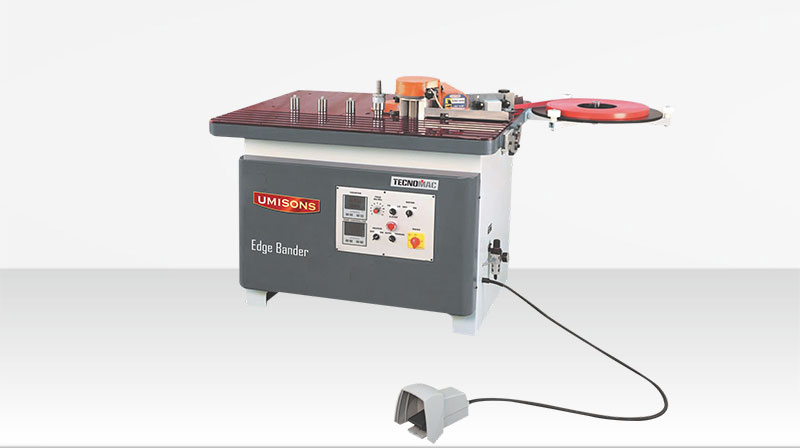

No.1 Edge Banding Machine Manufacturer in Ahmedabad, India
- Most popular Edge Bander machine for straight and curved panels.
- You can pre-define the length of edge banding tape as per workpiece.
- Gluing, pasting & cutting the edge is done automatically.
| Specifications |
Unit |
Technical Parameters |
| Table size (L x B) |
mm |
150 x 900 |
| Minimum work piece length |
mm |
280 |
| Work piece thickness range |
|
|
| Inclined 45° Edge |
mm |
n/a |
| – Full Straight Edge |
mm |
10 – 50 |
| Banding thickness |
|
|
| – Inclined 45° Edge |
mm |
n/a |
| Full Straight Edge Min |
mm |
0.4 – 2.0 |
| – Radius for curved edging |
mm |
20 |
| Glue pot capacity |
kg |
3 |
| Feed speed |
m / min |
4 to 12 |
| Front table tilt angle |
degree |
0° to 45° |
| Maximum setting temperature |
°C |
180° |
| Compressed air requirement |
hp / kg / cm² |
0.5 / 5.7 |
| 45° Tape groove motor |
kw |
n/a |
| Power supply |
voltage / Ø |
415V, 3Ø |
| Total power |
hp |
2.5 |
| Machine dimension (L x B x H) |
mm |
1850 x 1000 x 1040 |
| Approx. net weight |
kg |
280 |

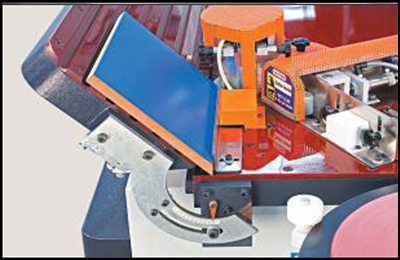

- Hylum surface working table with 45° tilt
