Wide Belt Sander

Specially design Heavy Duty Machine (UI-1300-DH) for Finger Jointed Solid Wood Board Calibration & sanding

Also we have machine (UI-1300-SH) for fine sanding Ply Wood, Block board & Flush Door

American photo eye control sending belt oscillation

Air jet blower for abrasive belt cleaning and cooling to expand belt lift and increase sending precision

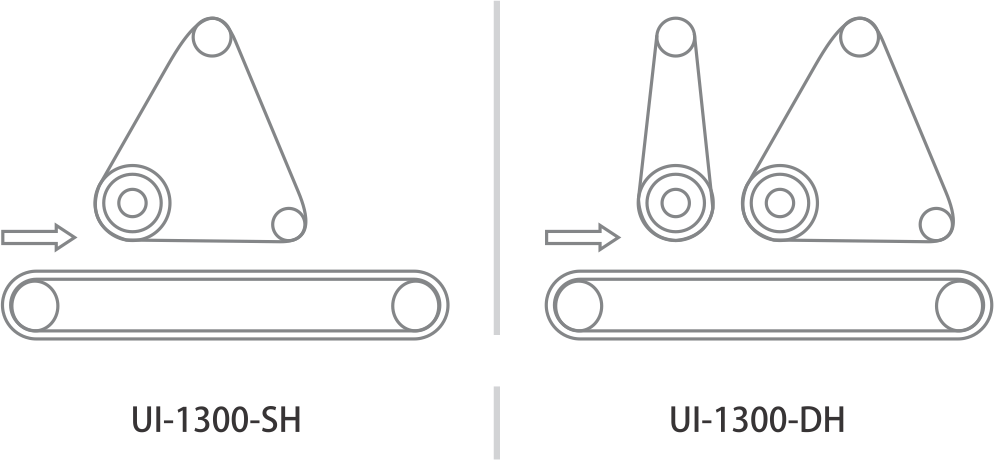

UI-1300-DHUI-1300-SH
Technical Specification
UI-1300-SH
UI-1300-DH
Width of Sanded Panel 40 – 1300mm 40 – 1300mm
Thickness of Sanded Panel 2.5 – 150mm 2.5 – 150mm
Minimum working length 540mm 540mm
Feeding speed 7 – 30m/min 7 – 30m/min
Total Motor Power (KW/HP) 22.12 / 30 63.62 / 85
Front belt motor power (KW/HP) 37 / 50
Rear belt motor power (KW/HP) 18.5 / 25 22 / 30
Feeding Motor Power (KW/HP) 3 / 4 (Inverter) 3 / 4 (Inverter)
Lift & decline Motor (KW/HP) 0.37 / 0.5 0.37 / 0.5
Working pressure 0.4 – 0.8 Mpa 0.4 – 0.8 Mpa
Consumption of compressed air 1.5m3/min 1.5m3/min
The average speed of sucked air 25-30m/s 25-30m/s
Overall diamentions (L x W x H) 1900 x 2000 x 2120 2300 x 2650 x 2120
Net weight 2500 kgs 3850 kgs
