UI - BS 6

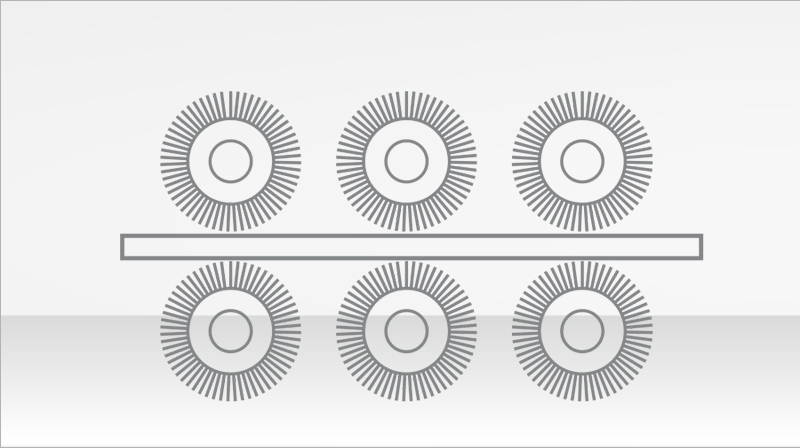

Top & Bottom - 6 Head

Brush-Sanding-Machine-Umisons-Industries

Available in Automatic & Semi Automatic Model

  • Brush Sanding Machine is specially developed for uniform sanding operation on plywood, block board and flush door.
  • With new brushing concept it will provide consistent grain and roughness as desire against belt process.
  • The brush required less brushing time and work long lasting. Save belt replacement time and increase efficiency in sanding operation.

Steel Wool Sanding

Sanding-Process-Umisons-Industries

Technical Specification

Technical Specification UI – BS 6 UI – BS 4
Brush Roller 4 Head + 2 Cleaning Head 4 Head
Brushing Roller Size 210 mm Dia. X 1320 mm Length 210 mm Dia. X 1320 mm Length
Max. Feeding Speed 7 Mtr. / Min. 7 Mtr. / Min.
Sanding Sheet Thickness Min 4mm To Max 52 mm Min 4mm To Max 52 mm
Power 19 HP 17 HP
